RFdevices passive antenna distribution units

the RFdevices story

Changes in 2020

We have upped out game for 2020 and beyond

Our ADU.24 is a game changer - up to 24 true diversity receivers can be both powered and feed antenna signals from a 1u device that will even power Sennheiser systems via the B output antenna feeds.

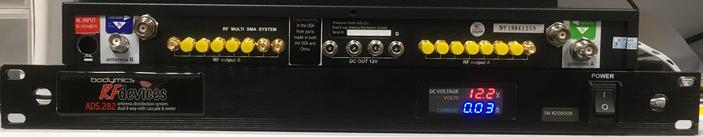

We have added an updated version of the ADA.28 which now features cascade out, AC in (no more wall warts or power bricks), internal 12v 5A power supply with voltage and current meters.

WIRELESS SYSTEM - ACTIVE AND PASSIVE ANTENNA DISTRIBUTORS - PADDLE ANTENNAS - RF CABLES - ANTENNA MOUNTING PANELS

Shop ALP.3

RFdevices Wireless Microphone System

Where it all began

Since the beginning, bodymics has sought out a cost effective UHF frequency wireless and antenna distibution systems - this led to the addition of some interesting products that perform above the price point alternatives.

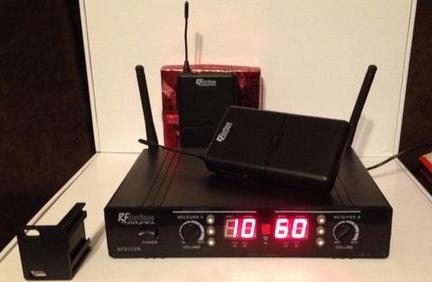

IIn 2017 we introduced a simple half rack width dual receiver UHF wireless system that works dreat up to around 12 channels almost anywhere in the US. It is cheap - $199 for a dual receiver and 2 body pack transmitters.

In 2018 we added a number of antenna distribution system and directional antennas that represented good value for money.

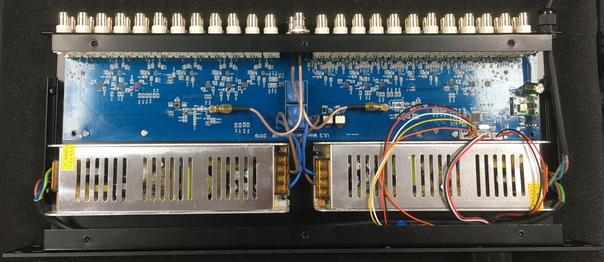

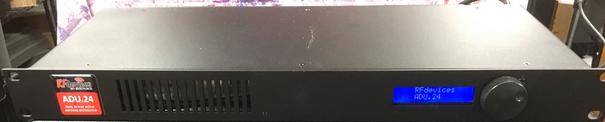

ADU.24 dual 24 way antenna distribution unit

RFdevices active antenna distribution unit

ASP.22 Dual 2 way Passive Antenna Splitter

Mounted on a iu rack panel

BNC connectors
pair of front panel mount connectors for antennas
includes 4x 20" RG58 BNC-BNC cables

MAP PRICE - $99.00/pr

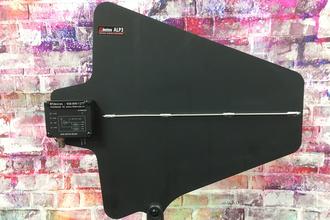

ALP.3 Active LPDA - "Paddle" Antenna

Standard Active log Periodic Dipole Antenna desogn with pre-amp with switchable gain (-6db, 0db, +6dB and +12db)

BNC connector
powered from antenna distributor or most receivers
sold in pairs
fits stanard 5/8" microphone stand thread for mounting

MAP PRICE - $299.00/pr

RFdevices Active Directional Antenna

PASSIVE ANTENNAS

MAP PRICE $899.00

RF ANTENNA CABLES

Shop RFB102

DOWNLOAD THE ADU.24 MANUAL

The RFdevices ADU.24 is an antenna distribution system that allows for the expansion of true diversity or diversity wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs.

A single ADU.24 system can support up to twenty-four (24) wireless receivers, distributing both RF and power to each.

The B antenna outputs have 13v phantom powered onto them to power Sennheiser wireless receivers.

Variants .
